Plastic Tellerette Ring
Plastic Tellerette Ring

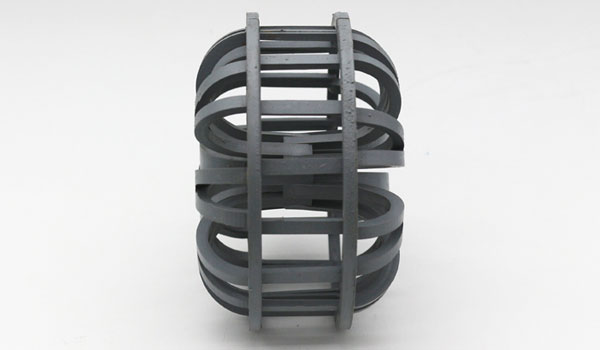

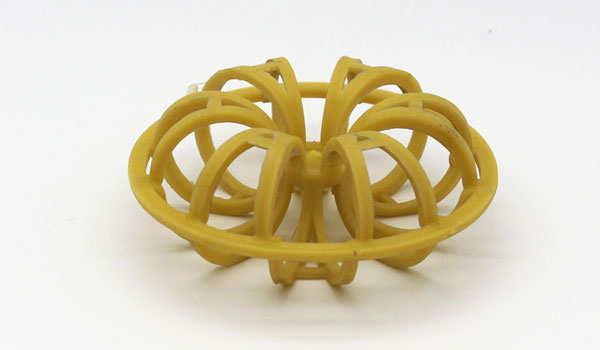

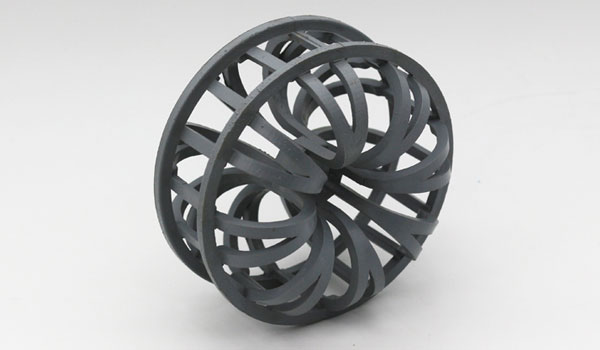

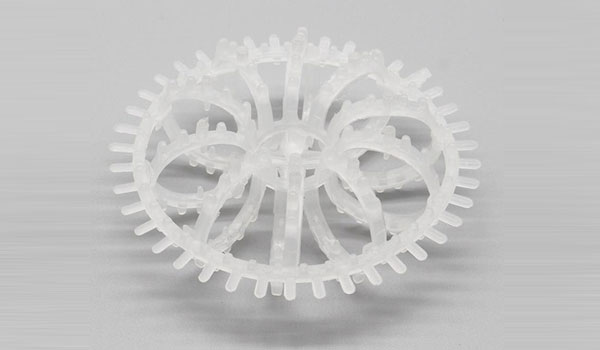

NAIKE Plastic Tellerette Ring was designed by Tell A J in 1956, so-called Teller Rosette Ring. The Packing liked ellipse s consist of many enlaced cirques. For High liquid load in lacuna of packing, so prolong time of gas liquid contact, enhance the efficiency of transfer. Based on these characteristics of big void age, Low-pressure drop. The sufficiency gas liquid contact, low weight, high efficiency of transfer, it is widely available in the washing, refining Tower.
Description
Parameters of Plastic Tellerette Ring
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 25*9*(1.5*2) | 195 | 82 | 170000 | 90 | 488 | |||
| 47*19*(3*3) | 185 | 88 | 32500 | 111 | 271 | |||
| 51*19*(3*3) | 180 | 89 | 25000 | 103 | 255 | |||
| 59*19*(3*3) | 150 | 92 | 17500 | 86 | 213 | |||
| 73*28*(3*4) | 127 | 89 | 8000 | 80 | 180 | |||
| 95*37*(3*6) | 94 | 90 | 3900 | 88 | 129 | |||
| 145*48*(3*6) | 65 | 95 | 1100 | 48 | 76 | |||
Advantages of Plastic Tellerette Ring
- Big Void Age
- Low Pressure Drop
- Low Weight
- High efficiency of transfer
- Sufficiency gas-liquid Contact
- Washing Tower
- Refining Tower
