Plastic Raschig Ring
Plastic Raschig Ring

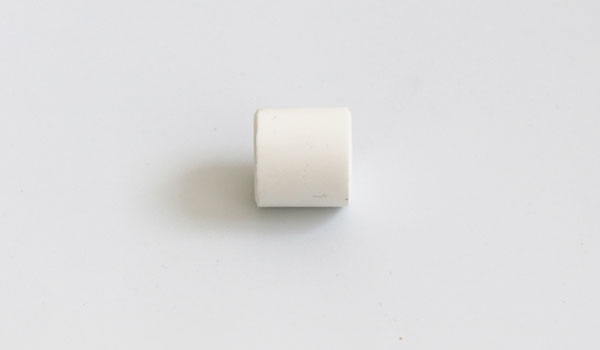

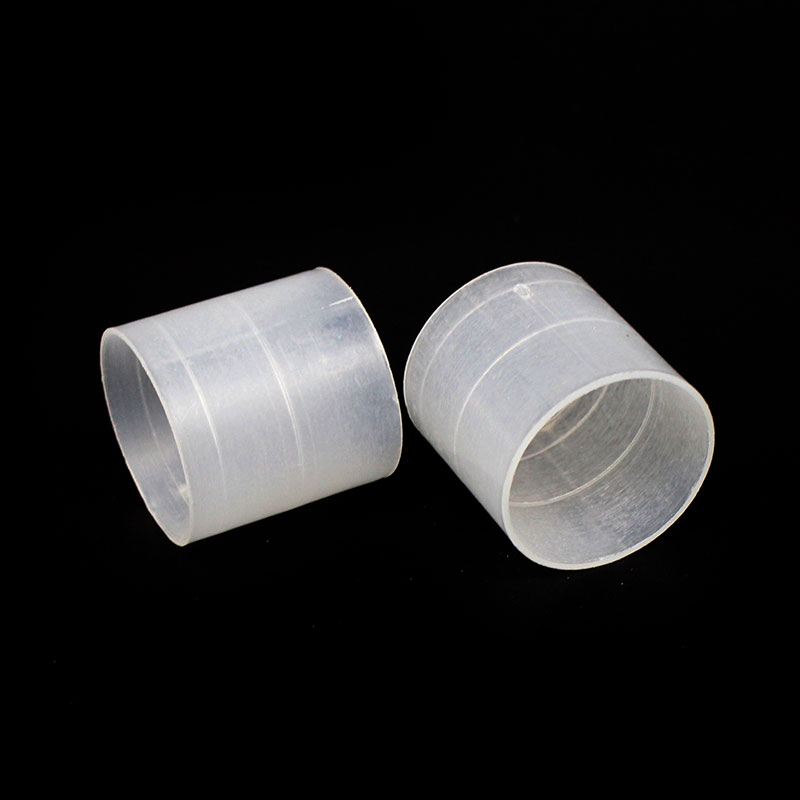

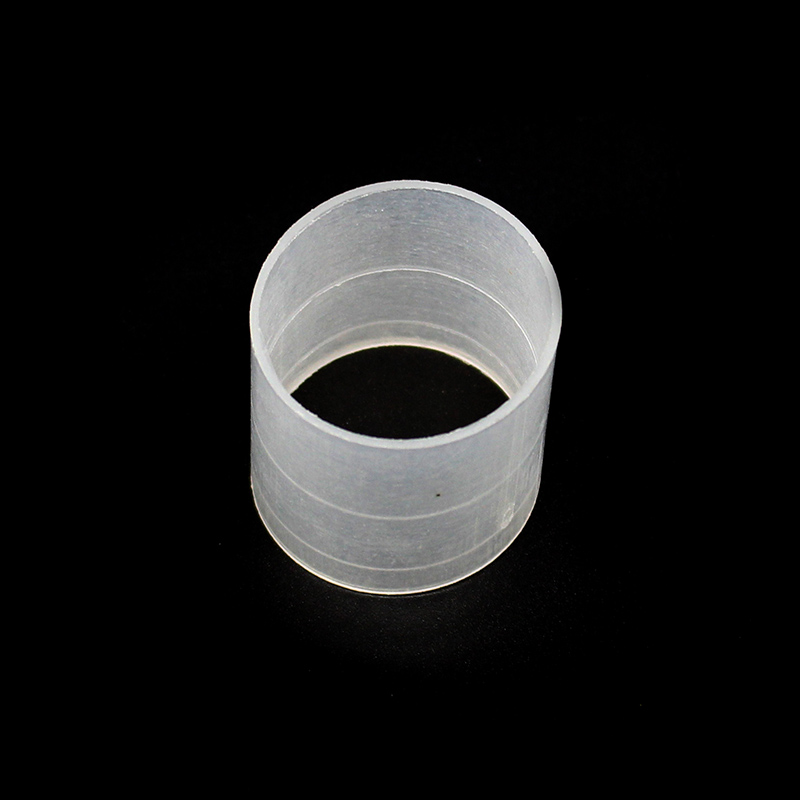

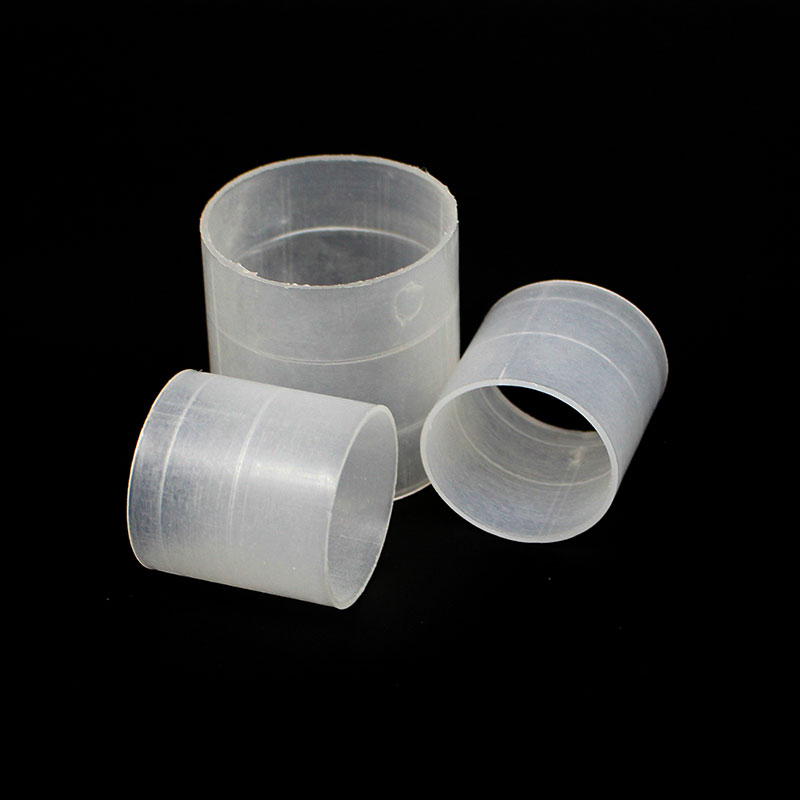

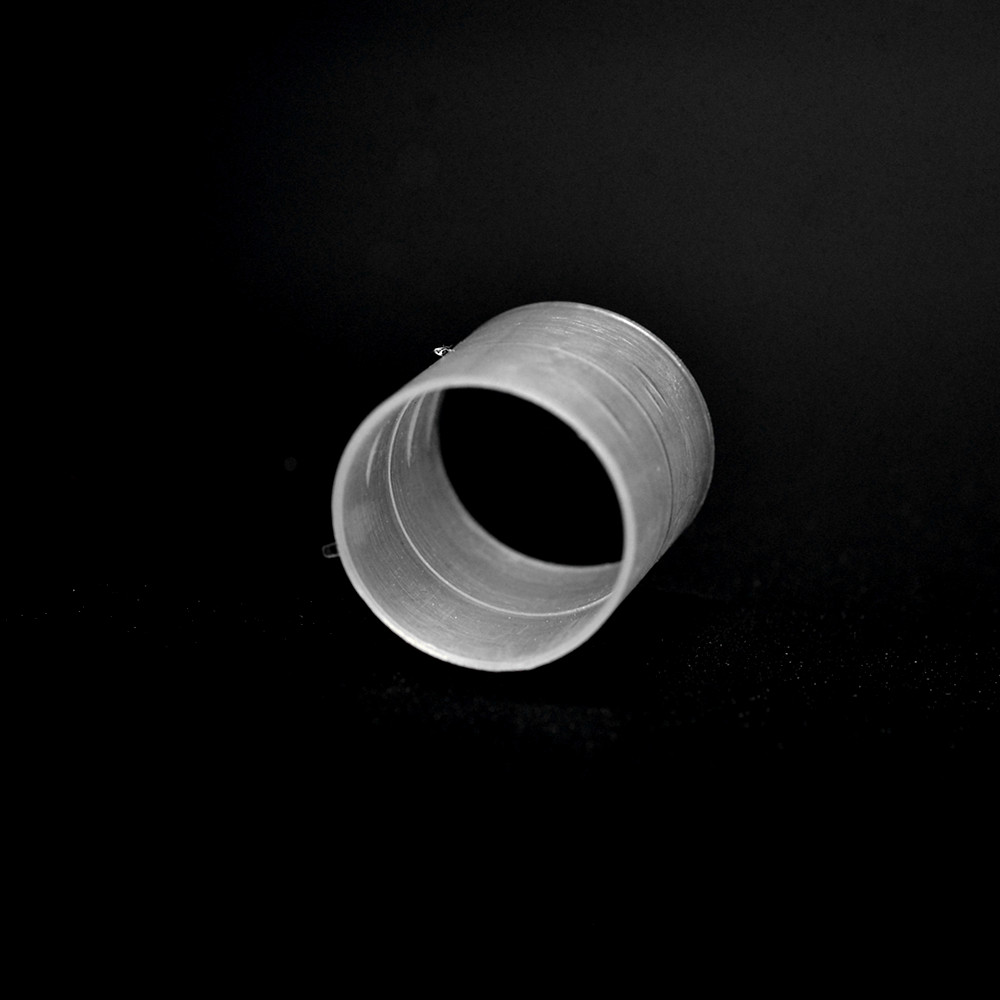

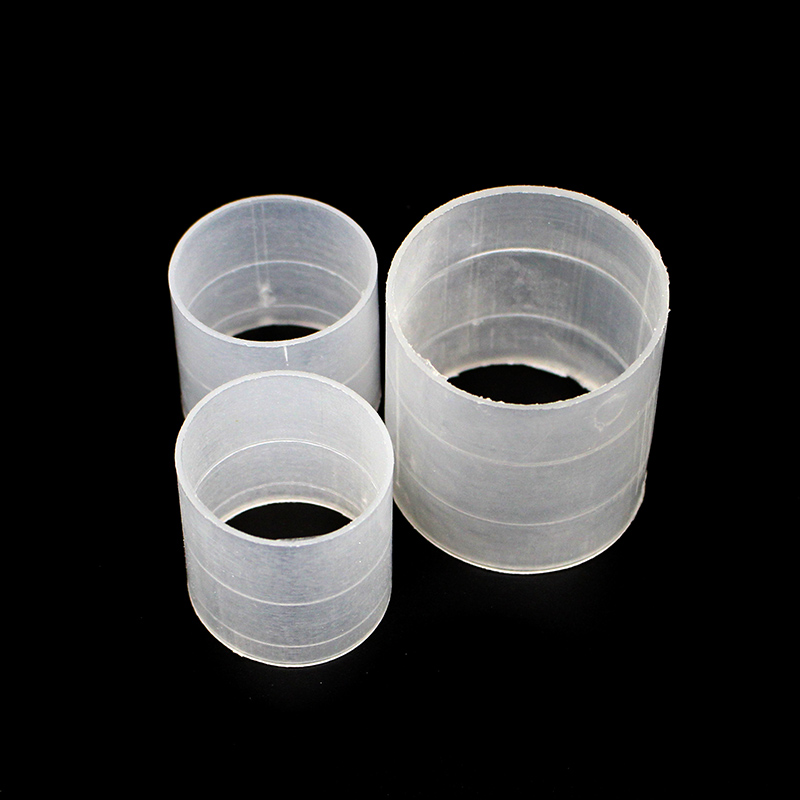

NAIKE Plastic Raschig rings are pieces of the tube (approximately equal in length and diameter) used in large numbers as a packed bed within columns for Distillations and other chemical engineering processes. It provides a large surface area within the volume of the column for interaction between liquid and gas or vapour. Raschig rings are named after their inventor, the German chemist Friedrich Raschig.
Description
Parameters of Plastic Raschig Ring
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 25*25*1.0 | 210 | 90 | 48500 | 88 | 86 | |||
| 50*50*1.5 | 105 | 92 | 6500 | 65 | 92 | |||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | ||
| Density(g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | ||
| Operation Temp(℃) | 90 | >100 | >120 | >60 | >90 | >150 | ||
| Chemical Corrosion resistance | Good | Good | Good | Good | Good | Good | ||
| Compression Strength(MPa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | ||
Advantages of Plastic Raschig Ring
- High Void Ration
- Low Pressure Drop
- Low mass-transfer unit height
- High flooding point
- Small specific gravity
- High mass transfer efficiency
