Plastic Intalox Saddles Ring
Plastic Intalox Saddles Ring

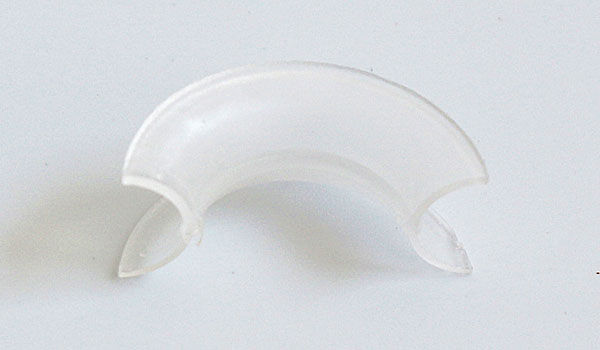

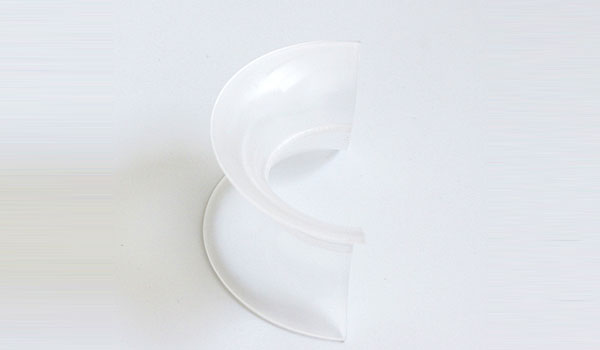

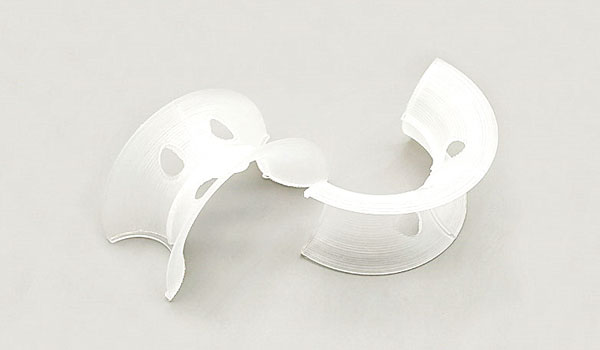

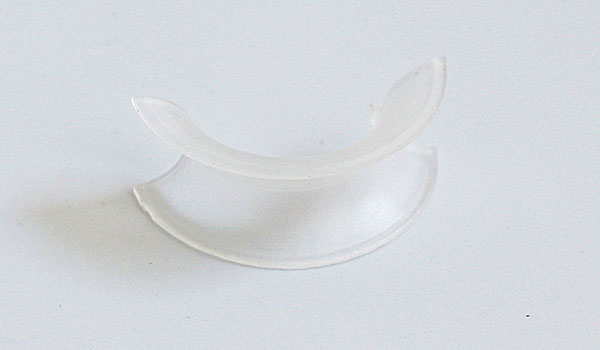

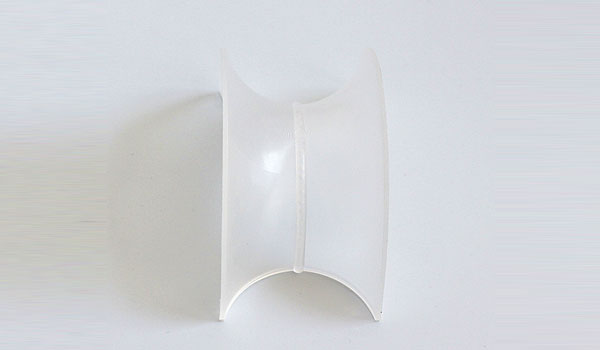

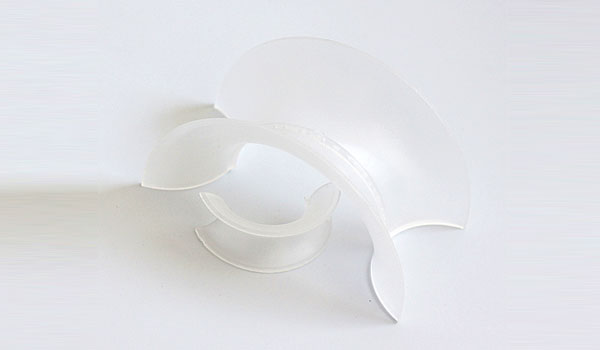

NAIKE Plastic Intalox Saddle Ring’middle part of this packing is the arc liquid channel so that the flow of air along with arc liquid channel. As big voidage, low pressure drop, low height of mass transfer unit, low specific weight, abundant of gas liquid contact, the excellent efficiency of transfer, the application temperature ranges in 60 to 150 degree. It is widely adopted in packing tower of AlkailiChloride, petroleum, coal gas, chemical, environment industry etc.
Description
Parameters of Plastic Intalox Saddles Ring
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 25*12.5*1.2 | 288 | 84.7 | 97680 | 102 | 473 | |||
| 38*19*1.2 | 265 | 95 | 25200 | 63 | 405 | |||
| 50*25*1.5 | 250 | 96 | 9400 | 75.2 | 332 | |||
| 76*38*3.0 | 200 | 97 | 3700 | 59.2 | 289 | |||
Advantage of Plastic Intalox Saddles Ring
- Big voidage
- Low Pressure Drop
- Low mass-transfer unit height
- Low Specific Weight
- Abundant of Gas-liquid contact
- Excellent efficiency of transfer
