Plastic Cascade Ring
Plastic Cascade Ring

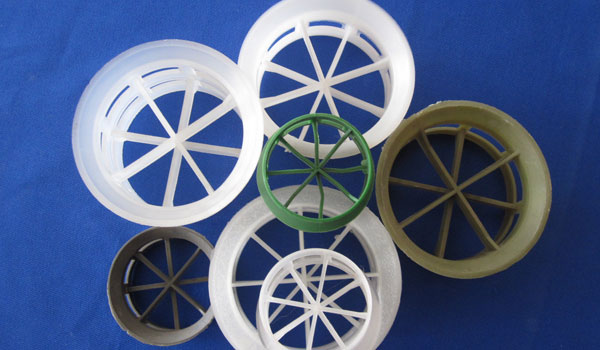

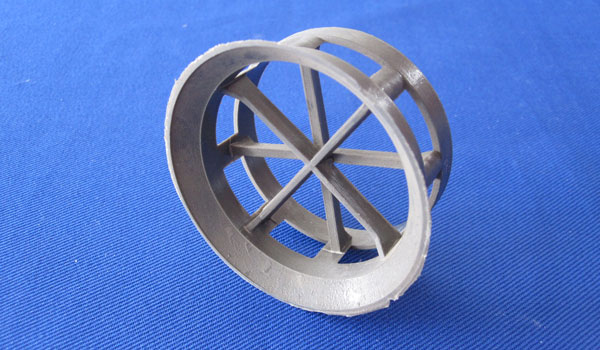

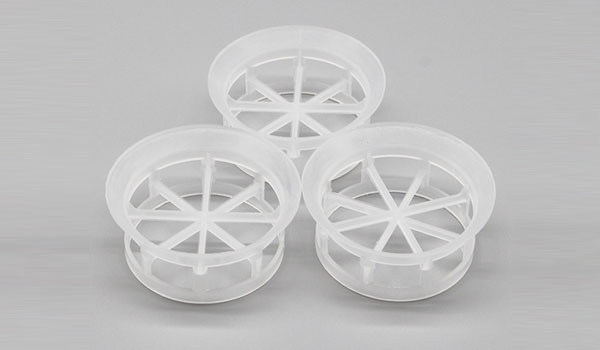

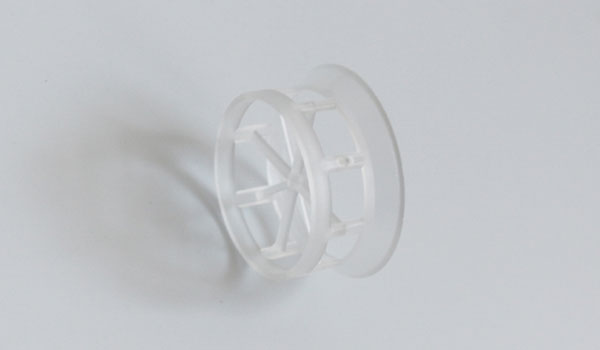

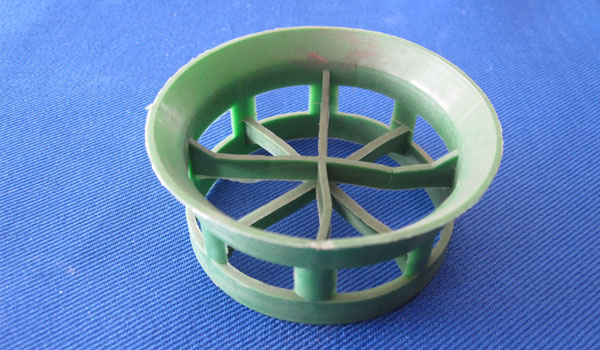

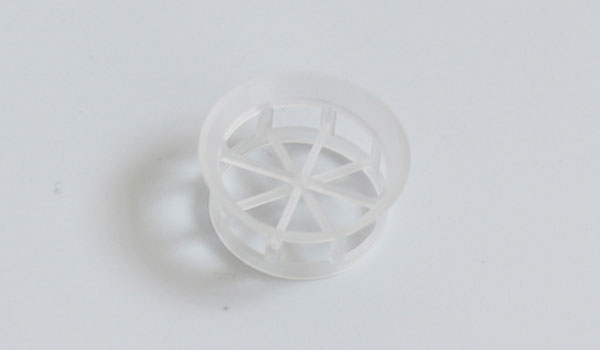

NAIKE Plastic Cascade Mini Ring is made from heat resistant and chemical corrosion resistant plastics, including PE, PP, PVC, CPVC, PVDF, etc.
Description
Parameters of Plastic Cascade Ring
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 16*8.9*1 | 370 | 85 | 299136 | 135.6 | 602.6 | |||
| 25*12.5*1.2 | 228 | 90 | 81500 | 97.8 | 312.8 | |||
| 38*19*1.2 | 132.5 | 91 | 27200 | 57.5 | 175.8 | |||
| 50*25*1.5 | 114.2 | 92.7 | 10740 | 54.8 | 143.1 | |||
| 76*37*3.0 | 90 | 92.9 | 3420 | 68.4 | 112.3 | |||
Advantages of Plastic Cascade Ring
- High Free Volumn
- Low Pressure Drop
- Low mass-transfer unit height
- High flooding point
- Small specific gravity
- High mass transfer efficiency
