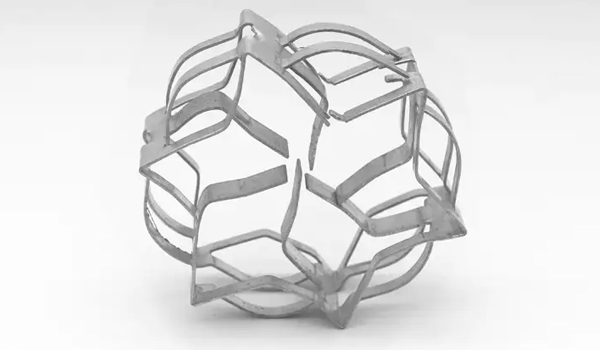

Metal Tellerette Ring

Metal Tellerette Ring

Metal Tellerette Packing like ellipse that made of many enlaced cirques. Due to its high liquid storage in lacuna of packing, it prolongs time of gas-liquid contact, enhances transfer efficiency. It has the characteristic of large voidage, low pressure drop, sufficiency gas-liquid contact, light weight. Metal Tellerette Tower Packing is stamped with a thin sheet of metal, stretched into a specific calendaring mesh, the surface into a regular diamond-shaped mesh, to maintain the geometric rules of the corrugated wire mesh. Tellerette filler can be processed with a variety of materials, and thus good corrosion resistance.

Categories: ,
Get a Quote

Description

Parameters of Metal Tellerette Ring

Product Name
Item
Size D*H*T(mm)
Number per m³
Surface Area m2/m³
Free Volume
%
Metal Teller Rosette Ring
Dg50
50×25
19180
112.8
96
Dg75
75×27.5
8000
136
97
Dg100
100×40
2600
140
96.5
Dg108
108×45
1760
53.4
95

Advantages of Metal Tellerette Ring

  • Low pressure drop
  • High flooding point
  • High efficiency
  • Uniform gas-liquid contac
