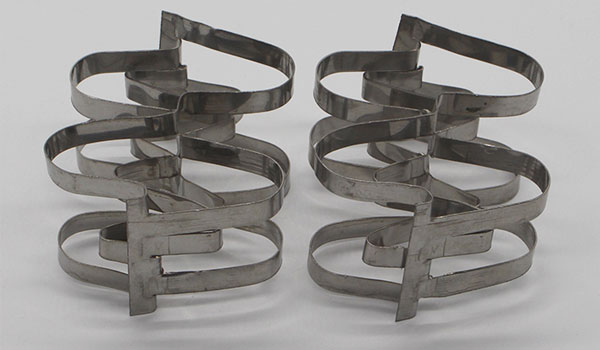

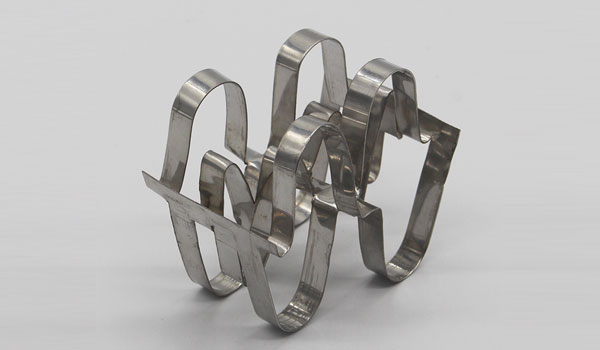

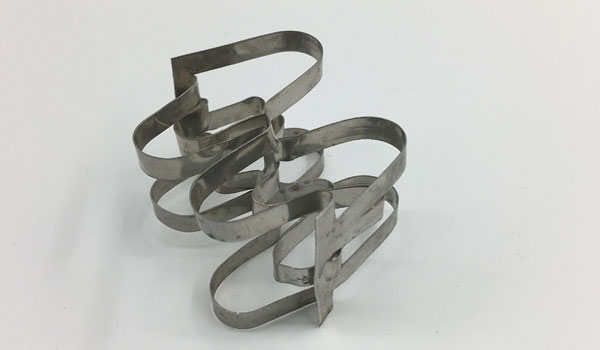

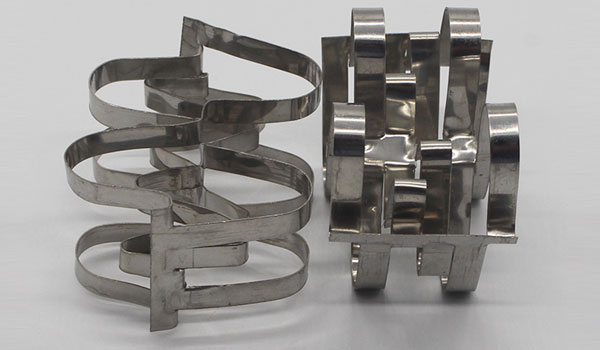

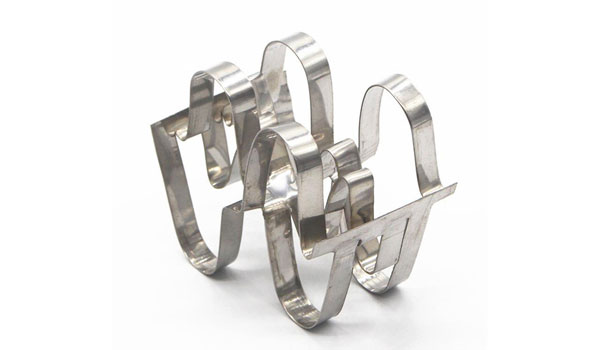

Metal Super Raschig Ring

Metal Super Raschig Ring

NAIKE Metal random packing is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Categories: ,
Get a Quote

Description

Parameters Of Metal Super Raschig Ring

Size
mm
NO. per
m3
Surface
m2/m3
Free Volume
%
15
180.000
315
96
20
145.000
250
97
25
46.500
180
98
30
32.000
150
98
38
13.750
120
98
50
9.500
100
98
70
4.300
80
98

Advantages of Metal Super Raschig Ring

  • High Loading & Throughput
  • Easily Wettable
  • High Resistance of Fouling and Temperature Applications
  • Small Specific Gravity
  • Mechanically Robust & Suitable for Deeper Beds
  • Good Liquid and Gas Distribution
  • High Mass Transfer Efficiency
