Metal Structured Packing
Metal Structured Packing

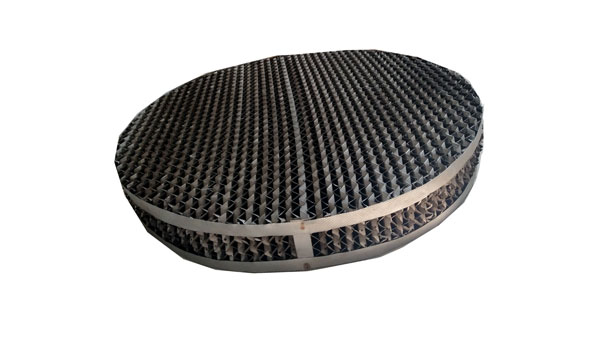

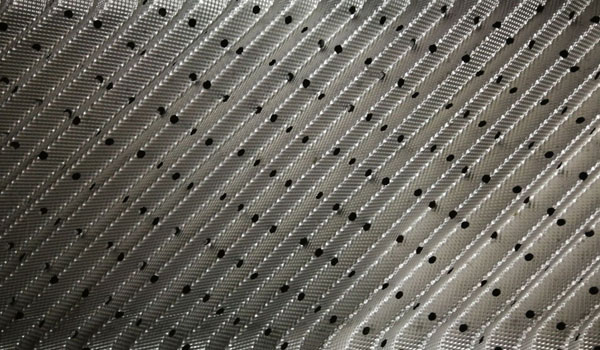

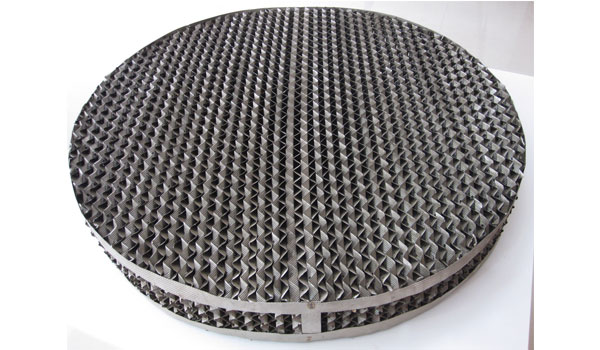

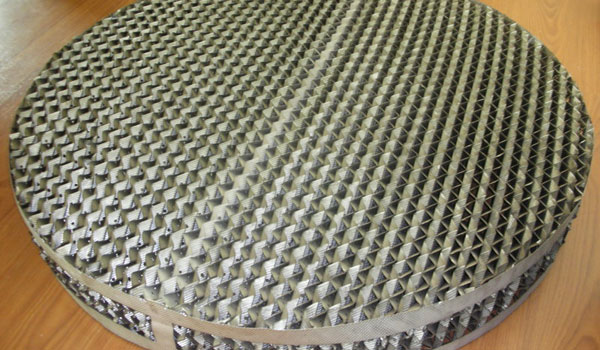

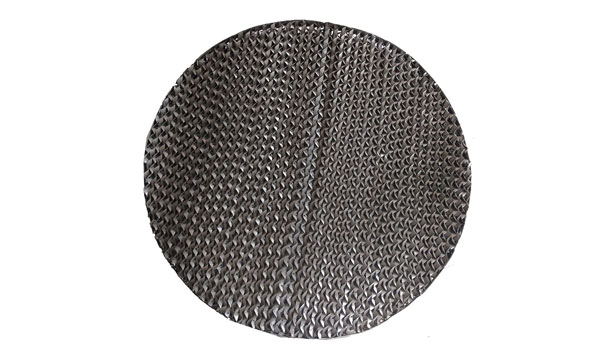

Metal structured packing(Metal Perforated Plate Corrugated Packing) is made of a perforated plate with channel corrugation on surface, and remains a structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.
Stainless steel
Carbon steel
Stainless steel alloys
Aluminum
Titanium
Nickel alloys
Copper alloys
Copper
Zirconium
Description
Parameters Of Metal Structured Packing
| Type | specific surface are m2/m3 | Void Volume
% |
Heaping Weight
Kg/m3 |
Wave
Height mm |
Theoretical plate number m-1 |
Δ P Pa/m |
Max.F-factor
m/s(kg/m3)0.5 |
| 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
| 250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
| 350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 |
Material of Metal Structured Packing
Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbon steels, Aluminium, copper bronze for reflux still, etc. Further materials available on request.
Application of Metal Distillation Tower Packing
- Perforated plate corrugated packing with a wide range of applications.
- Structured tower packing diameter: 0.1-12m; Pressure: Vacuum to high pressure;
- Liquid lood: 0.2 to more than 300 m3/m2. H;
- System: Ethylbenzene/ styrene, Fatty acide, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption
