Metal Raschig Ring
Metal Raschig Ring

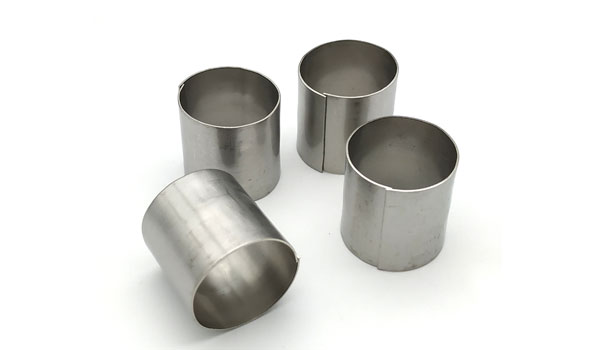

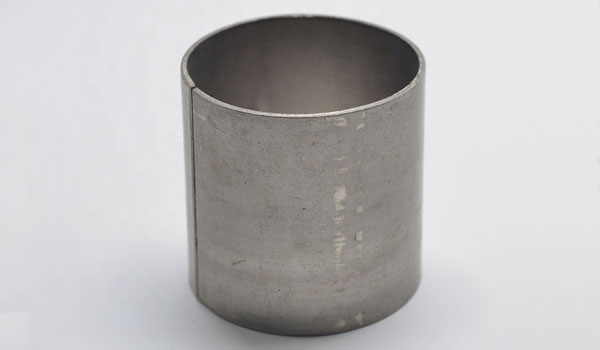

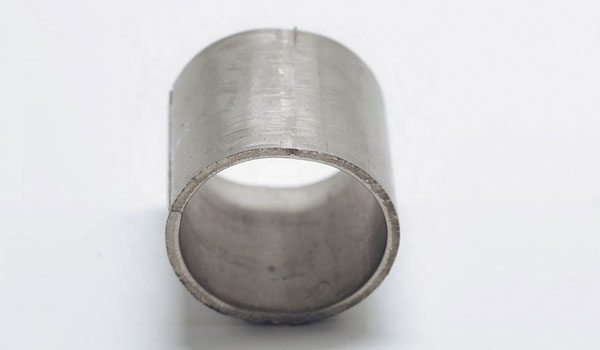

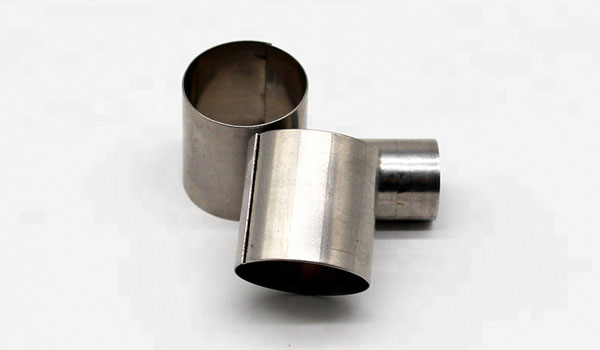

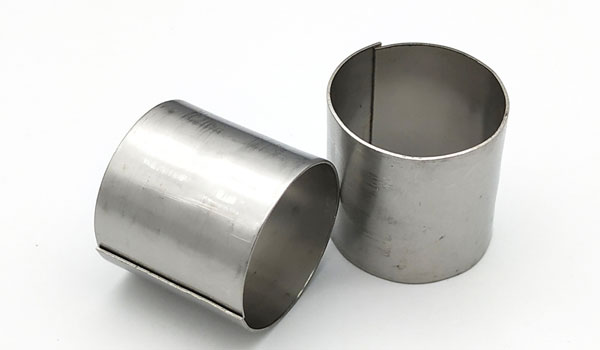

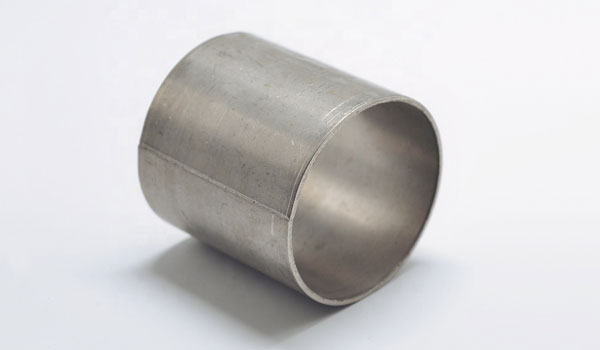

Metal Raschig Ring (MCR) is proved to be a kind of good tower packing a wide range of mass transfer applications. It provides one of those largest surface areas among tower packing options and handles heavy loading, process upsets and temperature shocks. NAIKE can offer metal raschig rings of different sizes and materials according to your specific separation applications.
Description
Parameters of Metal Raschig Ring
| Name | Normal | Diameter*Height* Thickness |
Surface area | Void space | Bulk density | No.elements | |
| mm | mm | m2/m3 | % | kg/m3 | per/m3 | ||
| Metal Raschig ring |
ø10 | 10*10*0.3 | 500 | 75 | 571 | 768000 | |
| ø12.7 | 12.7*12.7*0.3 | 400 | 80 | 490 | 410000 | ||
| ø16 | 16*16*0.3(0.4) | 350 | 86 | 408(543) | 214000 | ||
| ø25 | 25*25*0.5(0.6) | 220 | 88 | 403(483) | 52000 | ||
| ø38 | 38*38*0.6(0.8) | 150 | 90 | 326(435) | 15200 | ||
| ø50 | 50*50*0.8(1.0) | 110 | 92 | 322(403) | 6500 | ||
| ø76 | 76*76*1.0(1.2) | 68 | 95 | 262(314) | 1830 | ||
| ø89 | 89*89*1.2(1.5) | 58 | 97 | 283(353) | 1200 | ||
Advantage of Metal Raschig Ring
- High separation efficiency
- High capacity and low-pressure drop
- High separation, cold and heat resistant
- High durability and longevity
Application of Metal Raschig Ring
- Petrochemical Distillation and extraction applications
- Absorption in gas processing, combustion plants and columns
- Steam stripping and desorption in water treatment
- Condensing
