Metal Pall Ring
Metal Pall Ring

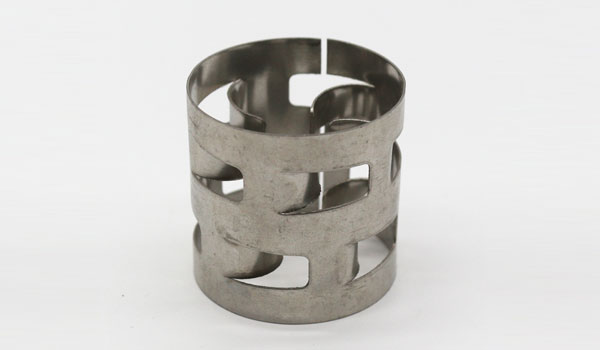

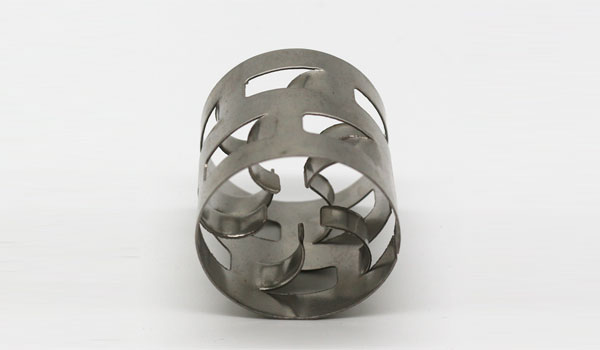

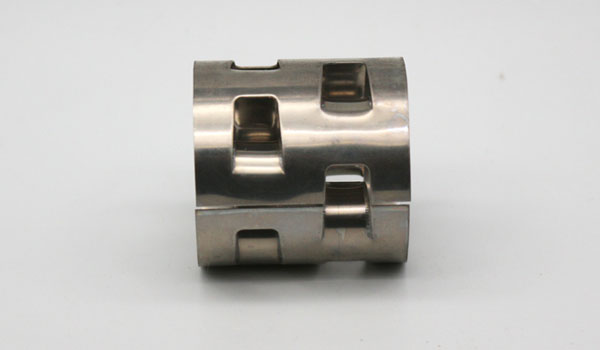

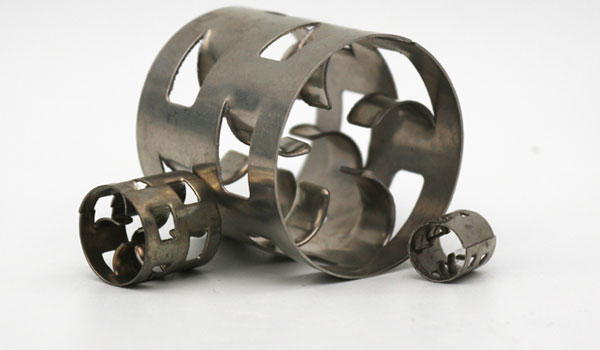

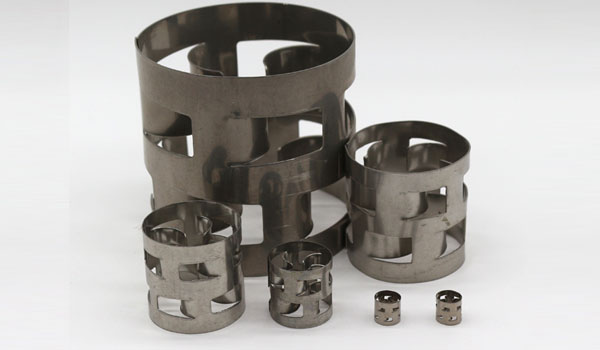

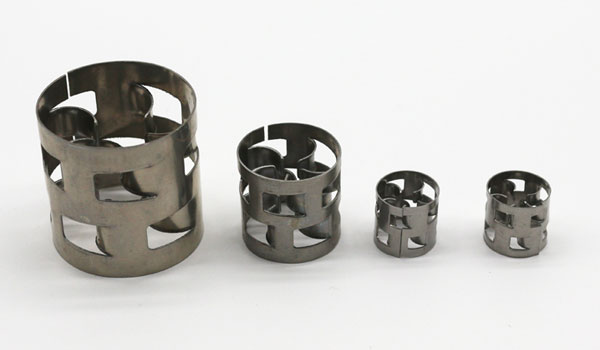

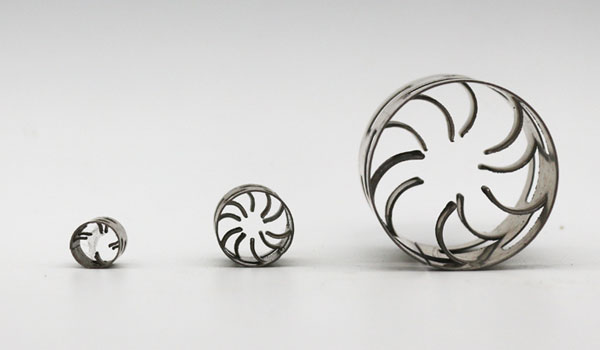

Metallic Pall Rings are an advancement on the Raschig Ring, with similar cylindrical dimensions but with two rows of punched out holes, with fingers or webs turned into the centre of the cylinder. This has the impact of significantly increasing the performance of the packing, both in terms of throughput, efficiency and pressure drop.
Description
Parameters of Metal Pall Ring
| Specification | ||||||||
| Name | Normal | Diameter*Height*Thickness | Surface area | Void space | Bulk density | No.elements | Packing factor | |
| mm | mm | m2/m3 | % | kg/m3 | per/m3 | m-1 | ||
| Pall ring | ø16 | 16*16*0.4 | 239 | 92.8 | 365 | 205000 | 299 | |
| ø25 | 25*25*0.6 | 219 | 93.4 | 427 | 55900 | 269 | ||
| ø38 | 38*38*0.8 | 129 | 94.5 | 365 | 13000 | 153 | ||
| ø50 | 50*50*1.0 | 112.3 | 94.9 | 395 | 6500 | 131 | ||
Note:
The above data is a reference to material stainless steel in the material thickness shown.
Other material avaiable:carbon steel,aluminum,bronze,stainless steel including 304, 304L, 410, 316, 316L.
Advantages of Metal Pall Ring
- This pall ring packing owns high Loading & Throughput
- Easily Wettable
- The random tower packing has high Resistance of Fouling and Temperature Applications
- Small Specific Gravity
- Mechanically Robust & Suitable for Deeper Beds
- Good Liquid and Gas Distribution
- High Mass Transfer Efficiency
Application of Metal Pall Ring
As a professional tower packing manufacturer, we offer metal pall rings that can be used in various situations.
- Various Separation and Absorption Applications
- Absorption and Stripping Services
- Steam Stripping
- Quench Towers
- Direct Contact Cooling
- Reaction Towers
- Distillation Columns
- Tower Packing
