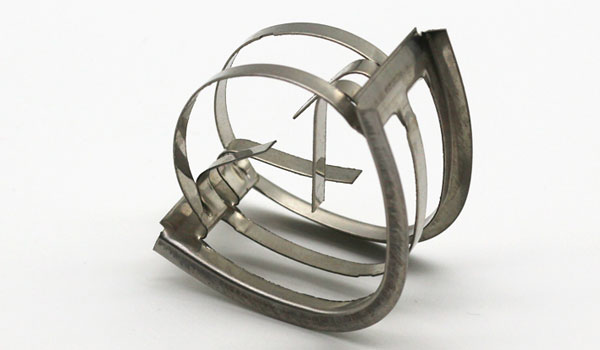

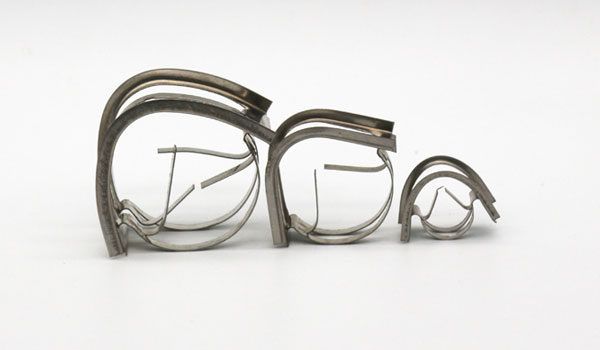

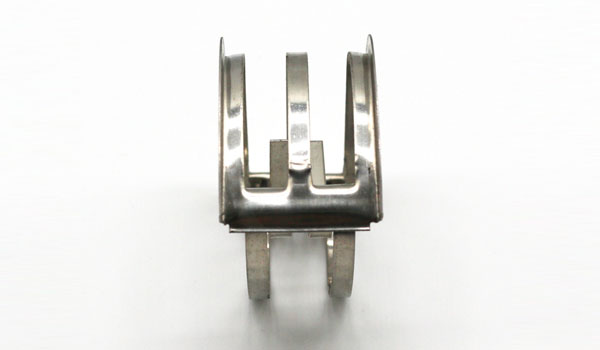

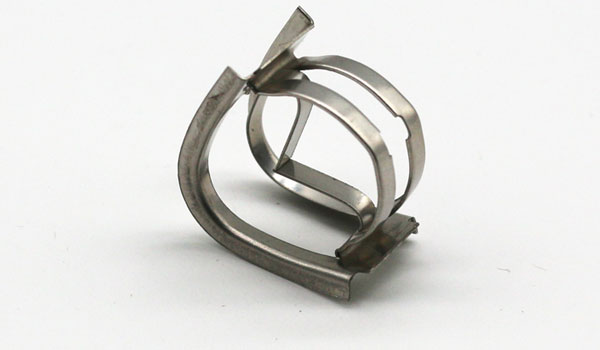

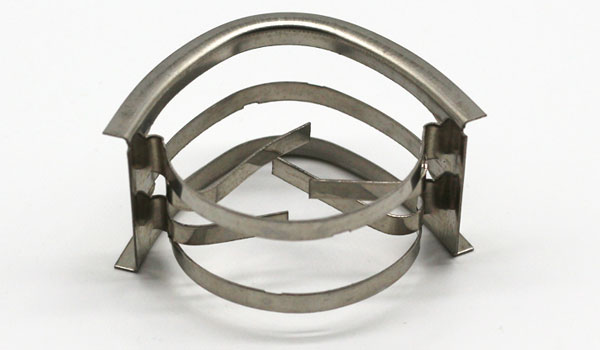

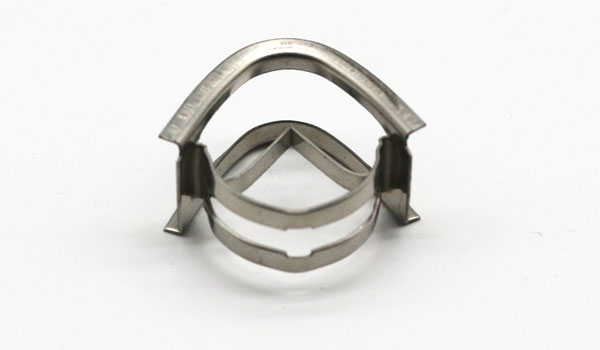

Intalox Metal Tower Packing
Intalox Metal Tower Packing
Metal Protruded Corrugated Sheet Packing is perforated 70 very small holes with thorn per square centimeter, then is pushed to corrugated sheet, finally it is assembled to the coil. Because the wetting ability increases, it still has the excellent separation performance of wire gauze packing when liquid flow is large.
Description
Parameters Of Intalox Metal Tower Packing
|
Type
|
specifific surface are m2/m3
|
Void Volume
%
|
Heaping Weight
Kg/m3
|
Wave
Height
mm
|
Theoretical plate
number m-1 |
Δ P
Pa/m |
Max.F-factor
m/s(kg/m3)0.5
|
|
250Y
|
250
|
97
|
85-100
|
12.5
|
2.5-3.0
|
300
|
2.6
|
|
500Y
|
500
|
93
|
170-200
|
6.3
|
3.0-4.0
|
200
|
2.1
|
|
700Y
|
700
|
85
|
240-280
|
4.5
|
5.0-7.0
|
900
|
1.6
|
Advantages of Intalox Metal Tower Packing
- Low pressure drop and high efficiency
- Large effective interfacial area
- High mechanical strength
- Low cost
Application of Intalox Metal Tower Packing
- Transfer towers both small and large diameter
- Deep vacuum towers where low pressure drop is crucial
- Distillation, absorption etc
- High pressure towers where capacity significantly exceeds conventional trays
